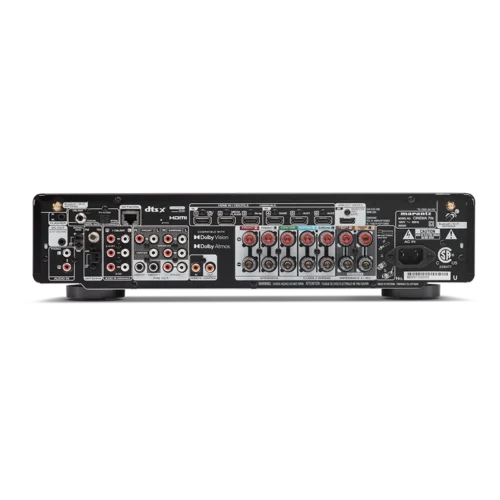

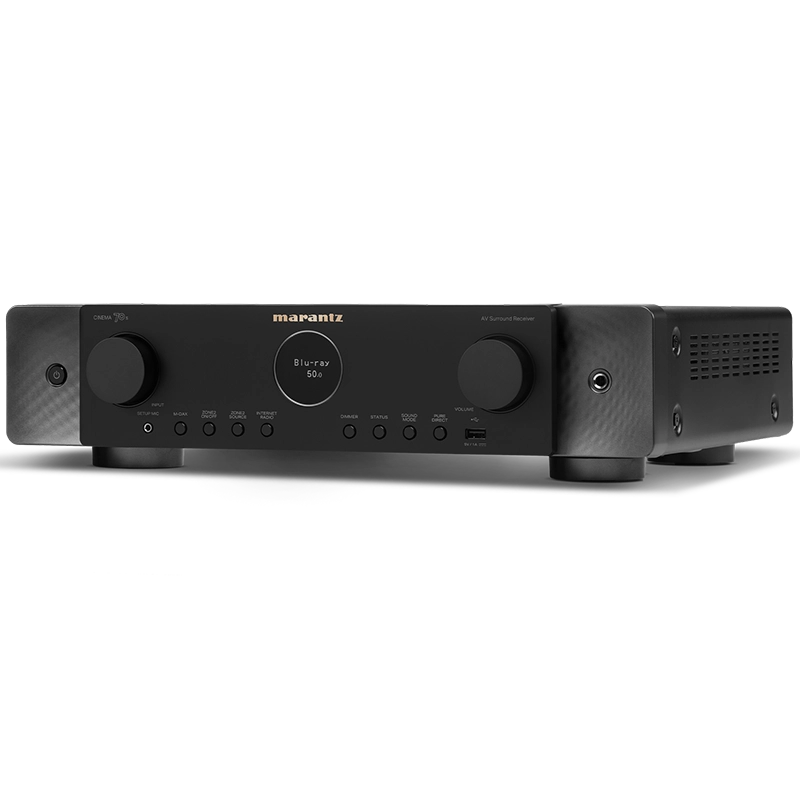

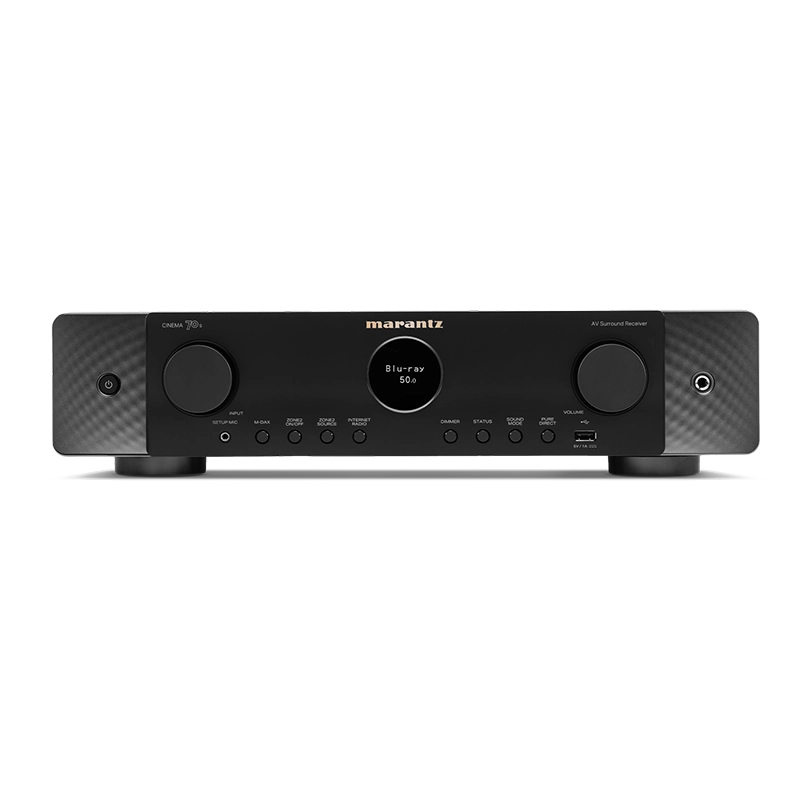

Marantz CINEMA 70s Slimline 7.2 Channel AV 8K Receiver with Dolby Atmos, 50W

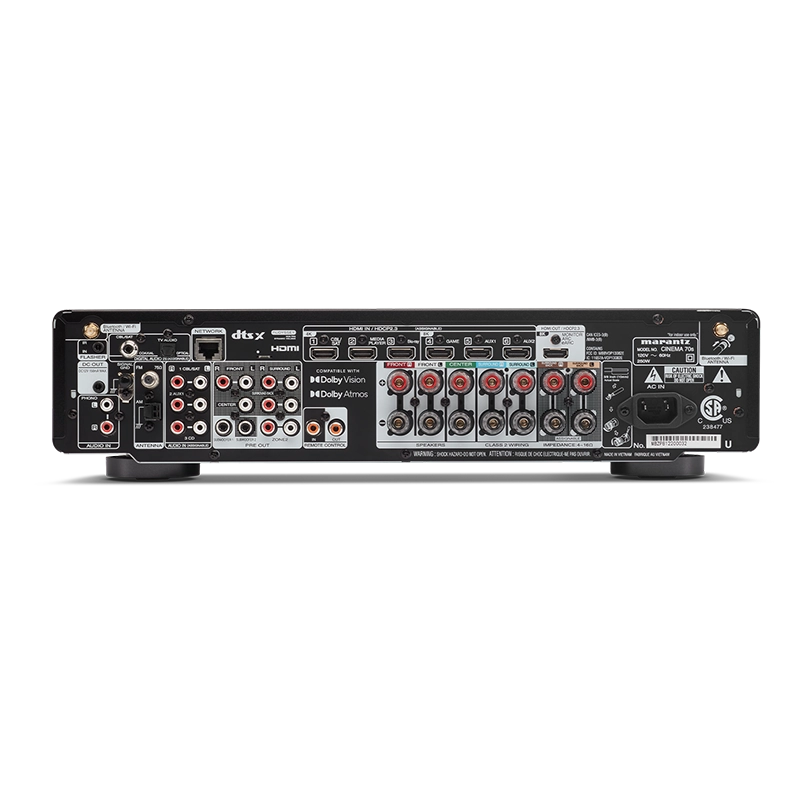

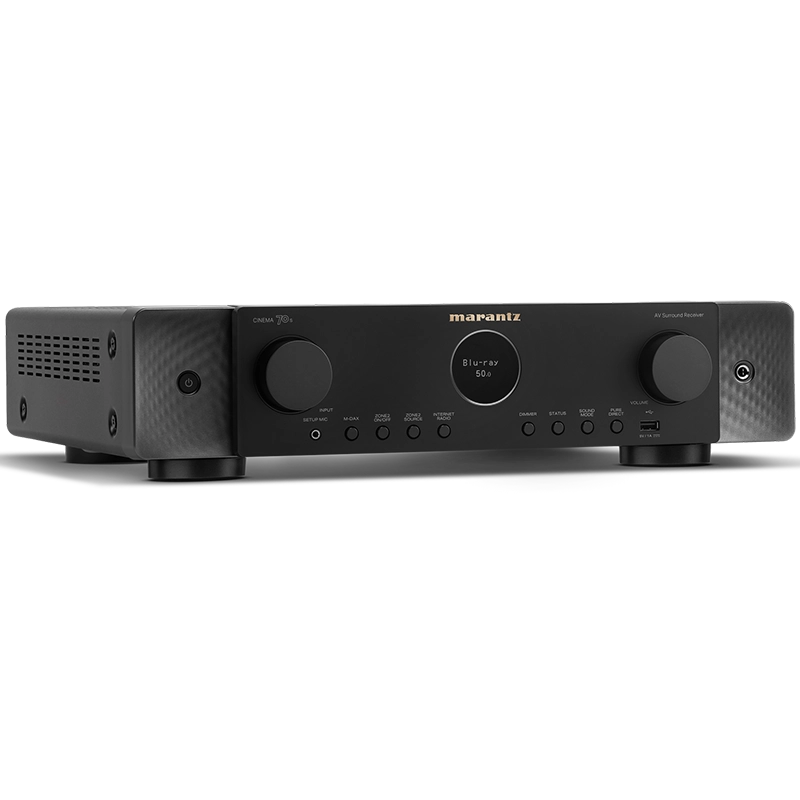

Marantz CINEMA 70s Slimline 7.2 Channel AV 8K Receiver with Dolby Atmos, 50W - Image 2

Marantz CINEMA 70s Slimline 7.2 Channel AV 8K Receiver with Dolby Atmos, 50W

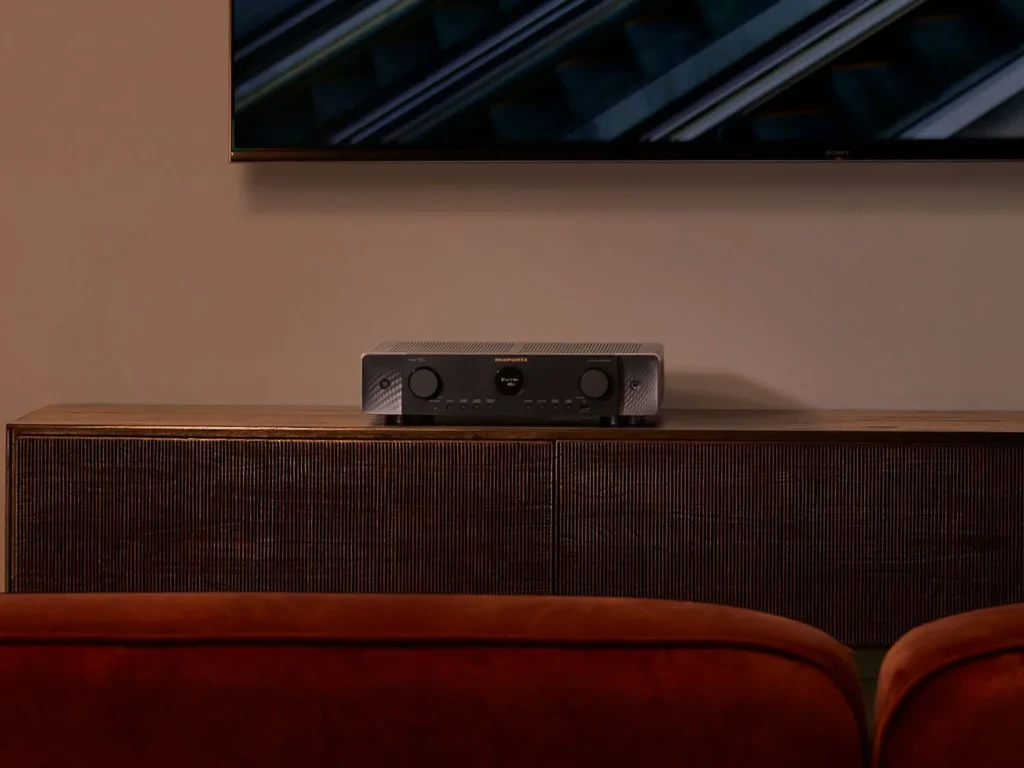

CINEMA 70s features a highly compact slimline design, making theaters possible in spaces where equipment cannot occupy large amounts of space. CINEMA 70s comes replete with the latest immersive audio formats and an all-new HD graphical user interface makes setup from your sofa intuitive.

Slimline Design
7.2 Channels
50 Watts per Channel
6 HDMI Inputs plus eARC
8K & Dolby Atmos
HEOS Built-in
5 Year Warranty

$1,700.00

SKU: CINEMA70S Category: AV Receivers Tags: 7.2 Channel, AV Receiver, Marantz

Engineered To Perform

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world’s most demanding home theaters.

Exquisite Design

The Marantz Sound Master meticulously tuned CINEMA 70s for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Sound Master Tuned

The Marantz Sound Master meticulously tuned CINEMA 70s for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Technology Leader

CINEMA 70s comes replete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

For the Soundtrack of Your Life

HEOS® has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

Search for Songs Across Platforms

HEOS® has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

Your Whole Home in One Place

Devices Powered by HEOS™ allow you to control multiple rooms, all with the HEOS app.

Hi-Resolution Streaming

Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites.

Number of Powered Channels	7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)	50 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)	–
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)	70 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)	100 W
70% Guarantee	Yes
Discrete Power Amplifier	Yes
Amplifier Topology	Class A/B
Current Feedback Topology	No
Bi-Amp Drive	assignable
DTS	DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby	Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other	–
Max Number of Processing (Preamp) Channels	7.1
Composite In / Out	0/0
Component In / Out	0/0
HDMI In / Out	6 / 1
Multi-Room Video Out via HDMI	No
Analog In / Fixed Level Out	3 in / 0 out
Phono (MM) In	Yes
Digital In: Optical / Coaxial	1 / 1
Multi-Room Out: analog / digital	1 /0
Multichannel Preamp Out	7.2
Subwoofer Out	2
7.1 multichannel input	No
Number of Speaker Terminals	7
Speaker A / B	assignable
Multi-Room Speaker Terminal	assignable
Front Inputs	USB-A
USB Audio / Made for iPod / Made for iPhone	Yes / No / No
AM/FM Tuner	Yes
Total HDMI Inputs / No. Support 8K	6 / 3
HDCP2.3 support	Yes
HDMI Outputs: Main / Zone	1 / 0
Analog to HDMI Video Conversion	No
HDMI Upscaling	1080P/4K to 8K
Max resolution @ framerate	8K/60Hz, 4K/120Hz
Audio Return Channel	ARC, eARC
Video Dynamic Range	HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming	Yes
Variable Refresh Rate / Quick Frame Transport	Yes / Yes
HDMI Pass-Through in Standby Mode	Yes
CEC	Yes
DSD Audio over HDMI	Yes
Auto LipSync	Yes
Copper Plated Chassis	No
Toroidal Power Supply Transformer	No
Hyper Dynamic Amplifier Modules (HDAM) (List version)	No
Pure Direct Mode	Yes
Gold Plated RCA Terminals	No
Clock Jitter Reducer	No
Audyssey	MultEQ
Audyssey Dynamic EQ / Dynamic Volume	Yes / Yes
Audyssey LFC	No
Dirac Live Upgradability	No
Variable Cross Over	Yes
Optimized Bass Redirection	Yes
Bass Sync	No
Lossy Formats	MP3 / WMA / AAC
Lossless formats	FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio	2.8 MHz / 5.6MHz
Gapless Playback	FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2	Yes
Network Audio Sharing	Yes
HEOS Multi-room and Streaming	Yes
AirPlay Audio Streaming	AirPlay 2
Internet Radio	TuneIn
Spotify*	Spotify Connect
Pandora	Yes
SiriusXM	Yes
Other Streaming Services *	Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
Roon tested	Yes
Ethernet Ports	Yes
Wi-Fi (include version / band)	Yes
Bluetooth (Include version)	Yes
Bluetooth Re-transmit for Bluetooth headphones	Yes
Voice Assistant Compatibility	Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android)	Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated	Yes
HEOS Link Compatibility: IR/ IP	Yes / Yes
Multi-Room zones	2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog	2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout	Yes / Yes
Zone HDMI Output from HDMI Source	No
Control Connectivity	IP Control / RS232 Control / Web Control / App Control
IR Flasher In	Yes
Marantz Remote Bus	Yes
DC Trigger Output	1
HDMI Diagnostics	Yes
Front Display	port hole OLED
GUI Languages	3
Setup Assistant	Yes
Smart Select on Remote	Yes
Firmware Update by Network / USB	Yes / Yes
ECO Mode	Yes
Auto Power off	Yes
Sleep Timer	Yes
Metal Front Panel	No
System Remote Control	RC050SR
Power Consumption in W	250
Power Consumption No-Sound (ECO on/off) in W	30 / 40
Standby Consumption in W	0.2
CEC Standby Consumption in W	0.5
Network Standby CoMaximum Dimensionsnsumption in W	Less than 2.0
Maximum Dimensions (W x D x H) in inches	Antenna:Horizontal: 17.4 x 15.1 x 4.3 Antenna:Vertical : 17.4 x 15.1 x 7.0 W/o Antenna: 17.4 x 14.7 x 4.3
Weight in lbs.	19.2
What's in the box	Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
